BTCP-297C OPP FILM A4 ream wrapper
The machine is designed by ourselves on basis of producing cellophane overwrapping machine for few years'experience, which working principle is driven by a series of mechanical structure and connecting pneumatic device, which can finish instantaneously multi-actions such as automatic feeding film, falling film, cutting film, and wrapping and so on during the process of package.
Introduction:
The machine is designed by ourselves on basis of producing cellophane overwrapping machine for few years’ experience, which working principle is driven by a series of mechanical structure and connecting pneumatic device, which can finish instantaneously multi-actions such as automatic feeding film, falling film, cutting film, and wrapping and so on during the process of package.
This machine integrated optics, mechanics, electricity, pneumatics and instrumentation . Also reasonable structure, advanced technique, easy operation，which is suitable for the package of global general official A4 format anti-static duplicating paper, instead of hand packing so as to reduce the working intensity and then improve the working effectiveness.
Performance and structure features:

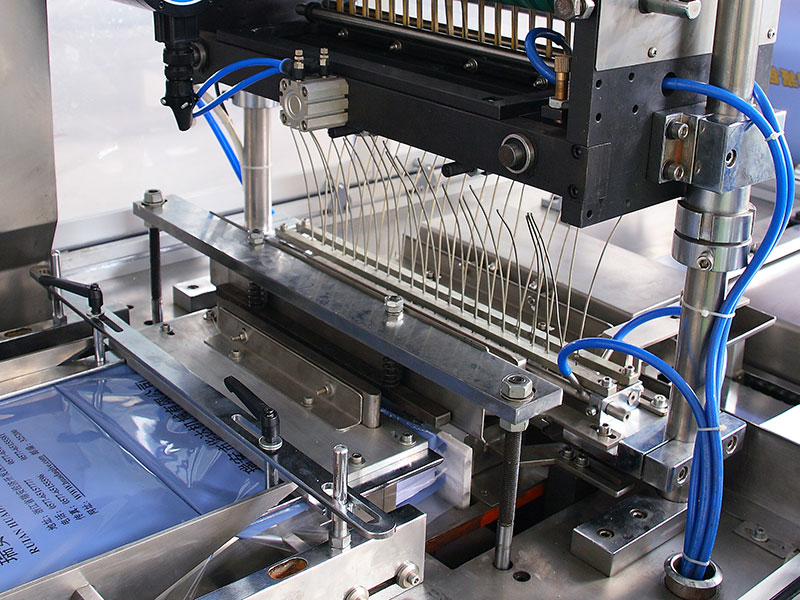

1/Main structure is driven by a series of cams and connecting rods and working accessories to finish the packaging. High stability, low noise.
2/Applying frequency conversion with multi-function digital non-ploy speed, adopting siemens PLC program controlled.

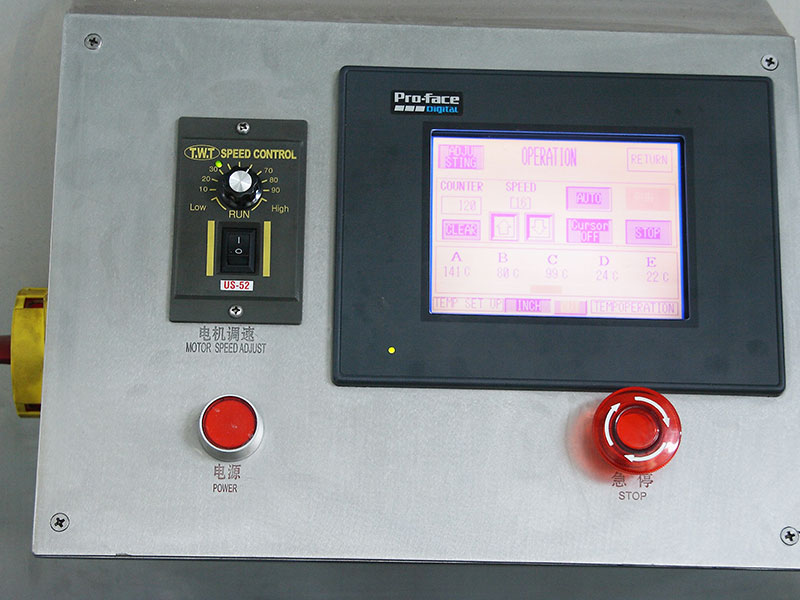

3/Touch screen realizing human-machine interface.
4/if package material is printed film photocell sensor will be provided so as to reduce the packing cost and also improve cutting accuracy of color film, wrapping effect and sealing performance.
Main technical parameters:
|
Model: |
BTCP-297 C |
|
Production capacity: |
9-15 (packs/min) |
|
A4 copy paper size(standard): |
297mmx210mmx50mm |
|
Voltage: |
220v 50hz |
|
Power: |
4.5kw |
|
Compressed air: |
0.4Mpa |
|
Roll diameter |
Inner diameter of roll: ￠76mm |
|
Overall dimensions: |
3200x1100x1900mm |
|
Weight: |
1200kg |
|
Package material |
Printed film. |
