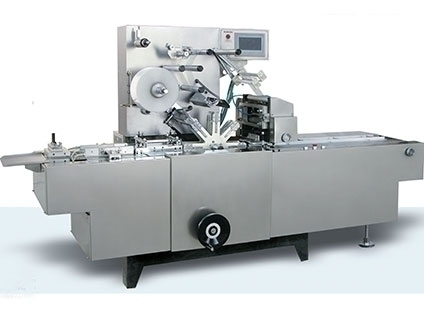

BT-2000B CIGARETTE
OVERWRAPPER PRINCIPLE
An overwrapper machine takes a length of heat sealable film from a roll and folds it around a product. This product can be a single item or a bundle. The folded film is closed by means of heated sealing devices.
ATTRACTIVE & FLEXIBLE
Overwrapper not only improves product presentation but also preserves freshness and enhances shelf life. The wrapping process requires low energy and low material costs. Combined with its versatility and flexibility it makes overwrapping an attractive application for a wide range of industries.
|
SIZE RANGE (IN MM) |
MIN. STANDARD |
MAX. STANDARD |
|
Length (L) |
40 |
200 |
|
Width (W) |
20 |
140 |
|
Height (H) |
10 |
80 |
|
Maximum output * |
60 strokes per minute |
|
|
Film width |
60-260 mm |
|
|
Voltage |
220V 50HZ ,ONE PHASE |
|
|
Power |
3.75KW |
|
|
N.weight |
880kg |
|
|
Film-roll diameter max. |
320 mm |
|
|
Packaging material |
Polypropylene,Bopp |
|
|
Basic configuration |
HOPPER INFEED |
|
|
OVERWRALL DIMENSION |
3200x850x1600mm |
|
|
Optional accessories |
PLC controller ,touch screen, printmark registration, Date printer, safety cover, conveyor belt. |
|
|
* depending on product, machine configuration and packaging material |
||
