DZ-120D

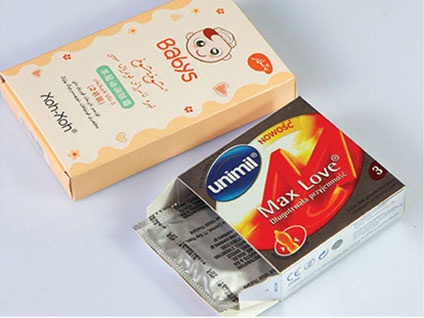

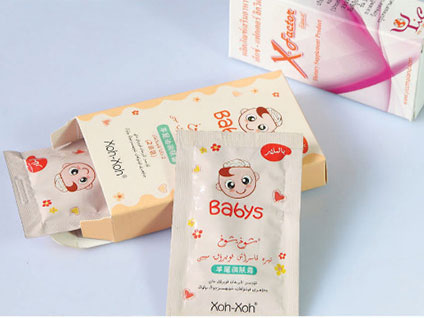

This machine is suitable for scatch, punch, soft al/al strips, wound paster, ointment plaster, facial mask,coffee bags into carton automatically. On line product feeding and detecting, carton opening and forming ,products and leaflet pushing into carton , printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
Application:
This machine is suitable for scatch, punch, soft al/al strips, wound paster, ointment plaster, facial mask,coffee bags into carton automatically. On line product feeding and detecting, carton opening and forming ,products and leaflet pushing into carton , printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
Features:
1.International famous brand of electrical component such as PLC touch screen, frequency inverter, etc.
2.Adopt human-machine operation system.
3.Automatically stop when machine is overload.
4.Automatically reject lacking of package product and leaflet.
5.Automatically display trouble,Alarm and count finished products.
6.Stable performance,operation is easy.
Main Technical Parameters:
|
Item |
Parameters |
|
|
Encasing speed |
20-60 boxes /min |
|
|
Box |
Quality requirement |
250-350g/m2[Base on carton size] |
|
Dimension range(L×W×H) |
(65-150)mm×(30-130)mm×(12-50)mm |
|
|
Compressed air |
Working pressure |
≥0.6mpa |
|
|
Air consumption |
200-240L/min |
|
Power supply |
380v 50HZ |
|
|
Main motor power |
1.5kw |
|
|
Machine dimension(L×W×H) |
3400mm×1200mm×1800mm |
|
|
Machine weight |
1500kg |
|
