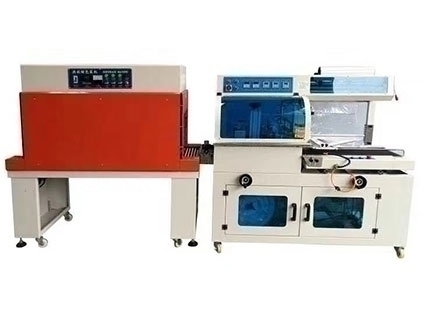

L bar type
L type shrink packaging machine which uses roll-fed thermoplastic film folded in half along its length. A product or group of products are placed between the two halves of film. The film is then sealed and cut off around the product with an L shaped sealing bar. The pack is then passed through a heated tunnel to shrink the film around the product to produce a tightly enclosed pack. Widely used for wrapping books, video tapes, floppy disks, foodstuffs such as dried fish, boxed products, etc.
L type shrink packaging machine which uses roll-fed thermoplastic film folded in half along its length. A product or group of products are placed between the two halves of film. The film is then sealed and cut off around the product with an L shaped sealing bar. The pack is then passed through a heated tunnel to shrink the film around the product to produce a tightly enclosed pack. Widely used for wrapping books, video tapes, floppy disks, foodstuffs such as dried fish, boxed products, etc.
Features:
1.Total enclosed packing type
2.Feeding bag-making,sealing-cutting,shrinking and packing are finished at once automatically
3.Constant temperature superfine metal alloyed sealing blade
Antistickness, slight sealing, non-coking, non-smoking, unpolluted
4.The blade resiles while cutting objects
5.Adjust packing size without changing mold when changing packing objects
6.The dual hot-air cycling temperature in the shrinking chamber can be adjusted optionally
Specification:
|
MODEL |
FQL450 |
FQL550 |
|
(V-Hz)Voltage |
220/50-60Hz |
220/50-60HZ |
|
Air Pressure Required (kg/cm3) |
5-7 |
5-7. |
|
Power |
1.35KW |
1.5KW |
|
Capacity(PCS/min) |
15-30bags/min |
15-30bags/min |
|
Maximum packing size L+H(H<150mm) |
<500mm |
< 600mm |
|
Maximum packing size W+H(H<150mm) |
<400mm |
< 500mm |
|
Cutter size L×W(mm) |
550×450 |
650×550 |
|
Applicable shrinkage film |
POF/PE |
1750x900x1450mm |
|
External Dinensions(L×W×H)(mm) |
1650x800 x1450 |
350kg |
|
Net we ight(kg) |
300 |
POF.PE |
L bar type
L type shrink packaging machine which uses roll-fed thermoplastic film folded in half along its length. A product or group of products are placed between the two halves of film. The film is then sealed and cut off around the product with an L shaped sealing bar. The pack is then passed through a heated tunnel to shrink the film around the product to produce a tightly enclosed pack. Widely used for wrapping books, video tapes, floppy disks, foodstuffs such as dried fish, boxed products, etc.Learn More

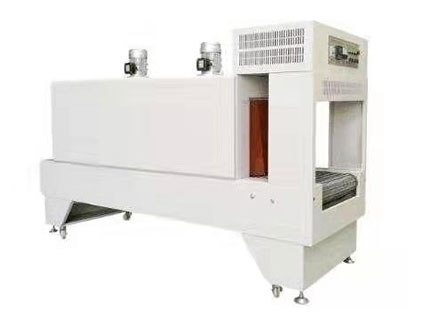

SHRINK TUNNEL TYPE
Beautiful machine, Stable quality, Safety,energy saving, patented products, domestic initiative, application to the POF PVC PP film thermal shrink packaging effect is perfect.Learn More

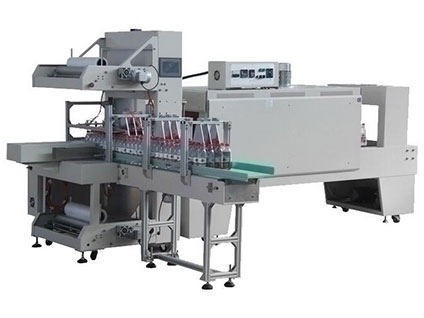

Sleeve type
A shrink packaging machine in which thermoplastic film iswrapped around a package or group of packages as it movesbetween two rolls of web that have had the ends welded together.After the package has completely passed between the web rolls, a set of I shaped sealing bars push the trailing webs together, apply heat to seal the webs together and cut it free. The pack isthen passed through a heated tunnel to shrink the film around the product to produce tighly bundled pack. Widely used for packaging a group of boxes containing foodstuffs or sundry goods, or a group of PET bottles, cans or paper containers for beverageLearn More
